Hand blender

Manufacturer: ESGE
Type: Zauberstab M150

Description of failure

The blender no longer turns properly.

Failure investigation

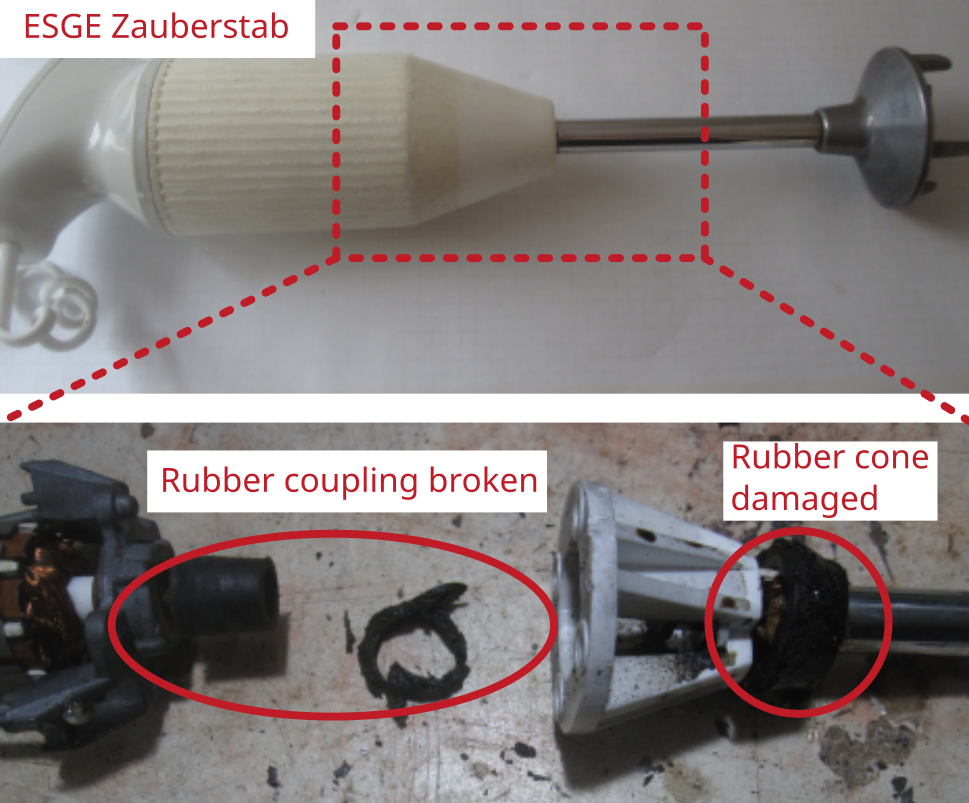

The mixer is opened. The damage is immediately visible: the rubber coupling is broken and has spread throughout the device. It needs to be replaced. Furthermore, the rubber cone also looks damaged and should be replaced.

Manufacturer material numbers:

• 420041 rubber coupling

• 720020 washer

• 783001 rubber cone

• 420021 drive shaft

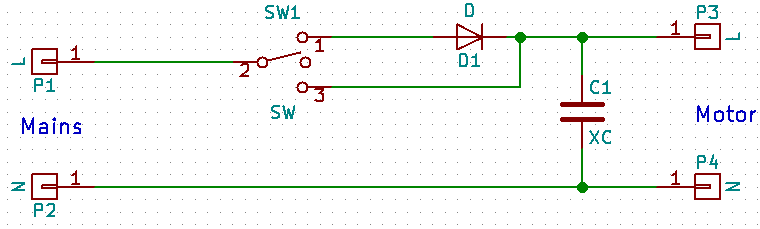

Schematic investigation

Out of interest the wiring of the motor.
